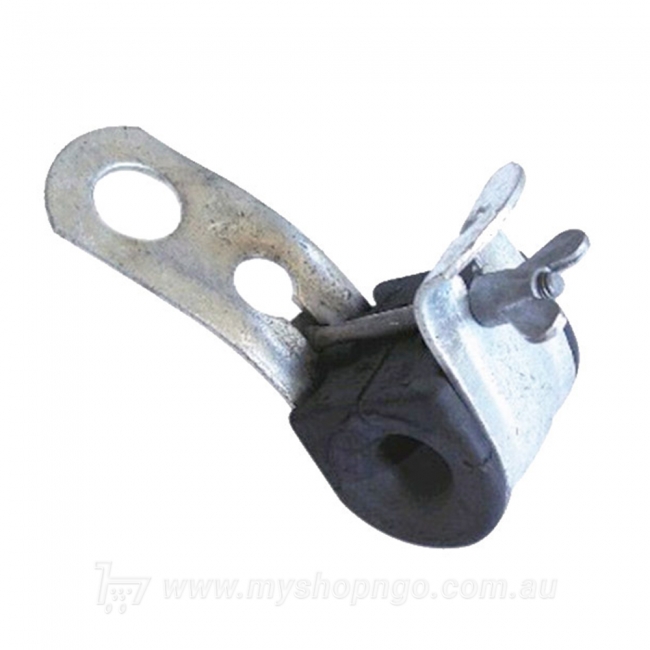

4X25 LV ABC Suspension clamp (IBSC)
Suspension clamps support and connect conductors onto insulator strings.
Suspension clamps provide the following:
- A safe mechanical connection in all conditions.
- Protection of the conductor at line design installation loads
- Controlled movement for added conductor protection against wind induced vibration and oscillation.
Features of the 4X25 LV ABC Suspension clamp:
- Range taking: 4 x 25mm2
- Type IBSC
- EPDM UV stabilised rubber insert.
- Galvanised body – with captive bolt slot.
- Galvanised steel hardware – oversize wing nut.
- Suitable for line deviation up to 30 degrees.
- Conforms to requirements of AS3766.
