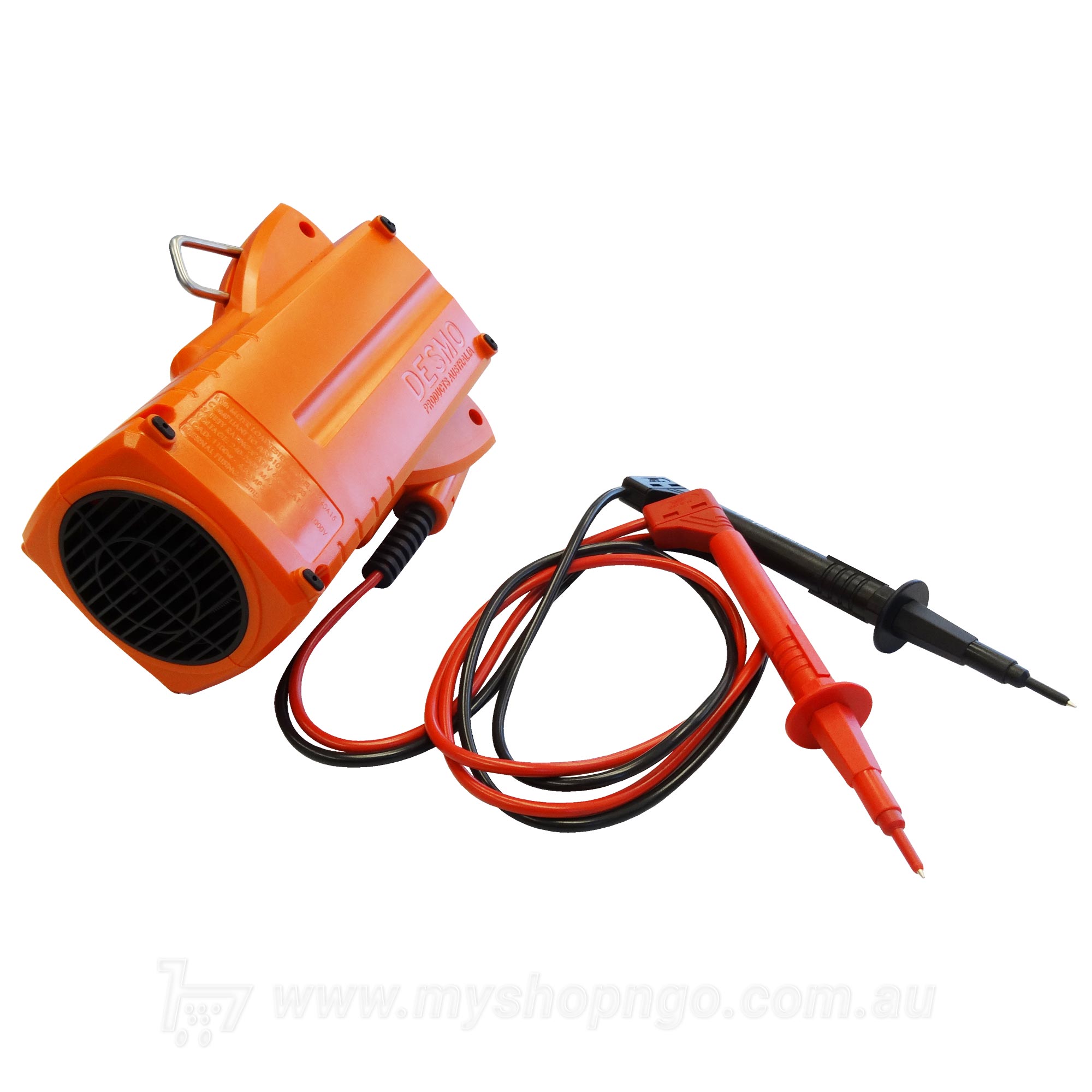

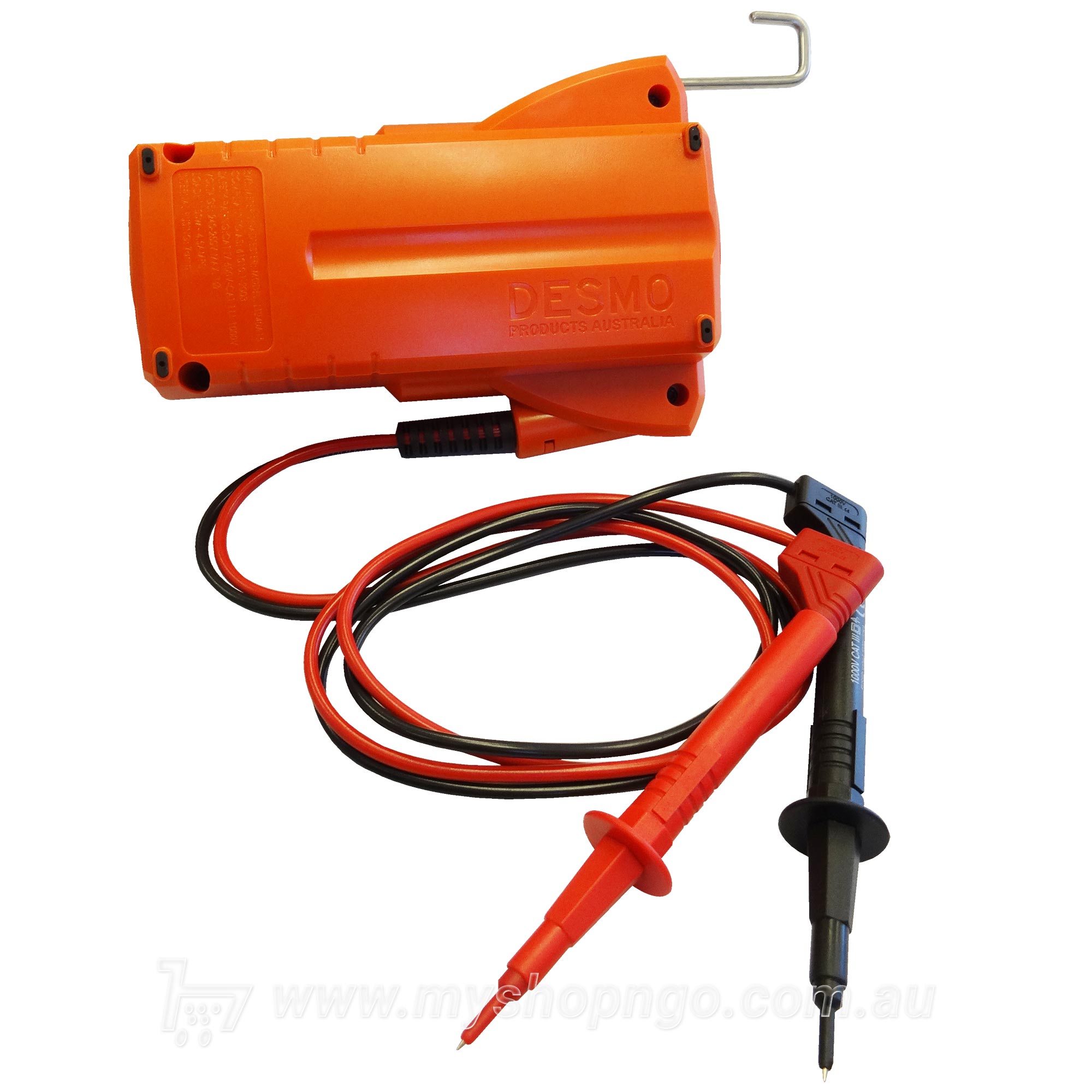

Desmo LT240A15 CAT IV 600V single phase load tester.
Used as an electrical load on kWh power meters when testing to ensure the correct operation and functionality of the meters.
Incorporates fused probes with silicon leads and is housed in a compact body.
The load tester is protected by an automatic thermal cut-out switch.
- Voltage: 240 – 250V max. 1Ø
- Load: 1100W – 4.5amp
- Internal Fusing: 7amp
- Safety Rating: Cat IV 600V – Cat III 1000V
- Compliant to: AS: 61010.1: 200
- Weight: 420gm
- Leads: Silicon with internal white wear indicator layer
- Test Probes: Cat III 1000 Volts
- Motor: 1100W with thermal cut-out
- Grills: Black Nylon 15% Glass Filled
- Cable Grommet: TPE 90A Shore
- Body: PC-ABS Fire Retardant – spark finish
- Hook: Polished 316 S/S that allows hands free operation
For more info about our load tester, please contact us.
