Digital Clamp Meter Cat IV 600V – Kyoritsu 2046R
The Kyoritsu 2046R Cat IV Clamp Meter can measure both the Voltage and Current in very low and high power circuits. Also know as a Tong Meter the 2046R is True RMS and thus enables an accurate measurement.
- Cat IV 600V to IEC61010-1
- AC A 600A AC V 600V
- DC A 600A DC A 600V
- Frequency 10kHz
- 600V input protection
- Sleep Function to save battery life
- Power Source 2 x AAA batteries
- Temperature Measurement switchable between Celcius and Farenheit
- Continuity & Diode Check Function
- Data Hold Function
- Double molded main body provides comfortable handling
- LCD Backlight function
- 6039 counts with Bar Graph Dispaly
- REL function to indicate measurement variation
- MIN/MAX function
- Dimensions 243(L) x 77(W) x 36(D) mm
- Weight 300g

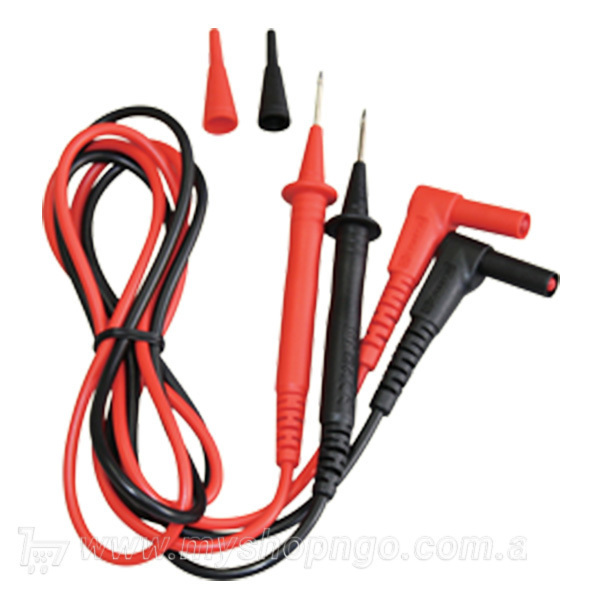

The unit is supplied in carry case with test lead (R03 x 2), operating manual and batteries. Unit may require calibration.
For more info about this product, please contact us.
