Product Details

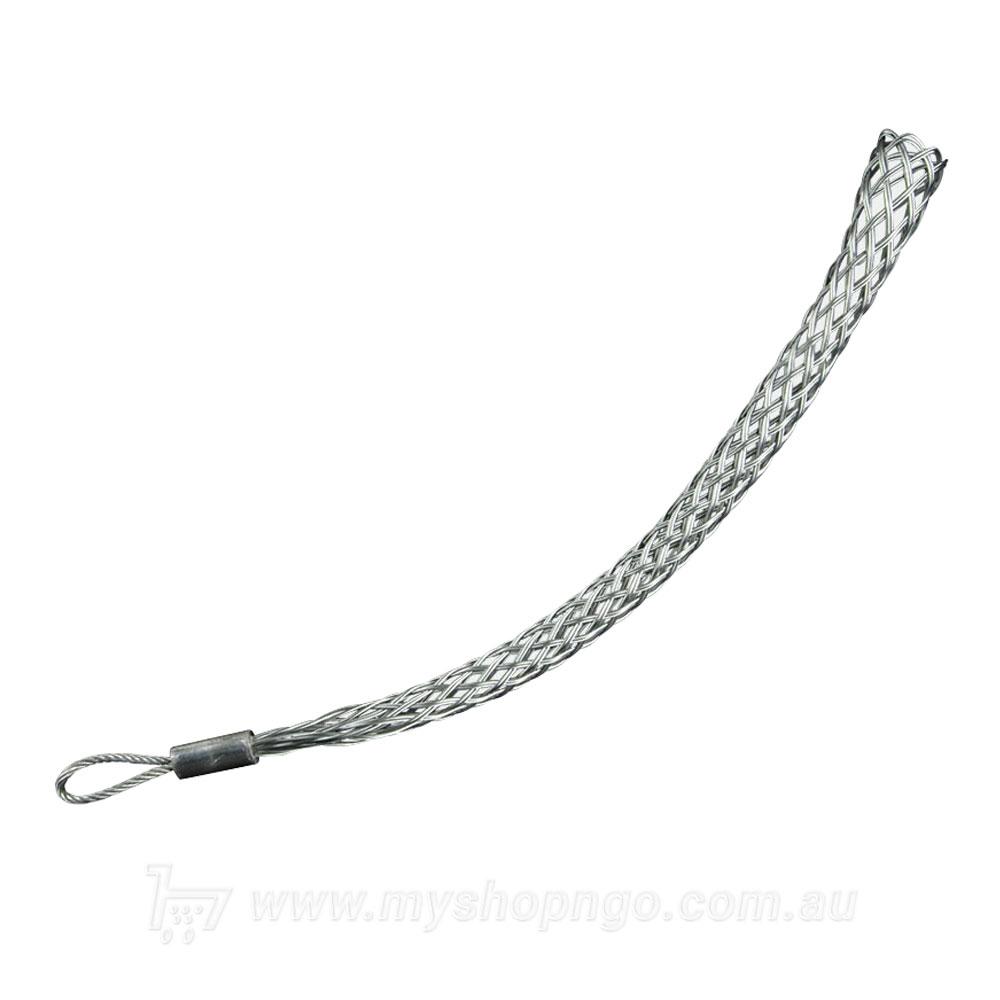

Galvanised Single Eye, Double Weave Grips/Socks – manufacturer Slingco
Designed to fit the a range of low voltage and medium voltage cables underground XLPE/PVC cables, and with a longer lattice length, these grips are ideal for pulling medium to heavy loads.
This grip has a flexible eye construction and is made of galvanised steel.
Features and benefits:
- Specifically designed for metric sized cable
- Available with soft or reinforced eye
- Longer lattice length
Details of the Galvanised Single Eye, Double-Weave grip:
| ARS Code | Weave Type | Range (mm) | Lattice Length (mm) | Overall Length (mm) | Break Load (kg) | Slingco Part.No |
|---|---|---|---|---|---|---|
| 10388 | Double | 38-50 | 490 | 680 | 5,080 | ZCS0324 |
| 10389 | Double | 50-63 | 480 | 633 | Â 5,080 | ZCS0325 |
| 10390 | Double | 63-89 | 518 | 672 | 6,095 | ZCS0326 |
| 10391 | Double | 89-115 | 698 | 890 | 7,110 | ZCS0327 |
| 10392 | Double | 40-50 | 900 | 1195 | 5,490 | ZCS12642 |
| 10393 | Double | 50-65 | 900 | 1195 | 5,490 | ZCS12643 |
| 10394 | Double | 65-80 | 900 | 1195 | 7,320 | ZCS12644 |
| 10395 | Double | 80-95 | 900 | 1195 | 7,320 | ZCS12645 |
For more info about this product, please contact us.
