Name: ROTAMARKA MINI 3D VANE RED-WHITE EYE
SKU: 09300
Price: 237.40 AUD
Availability: InStock

Product Details

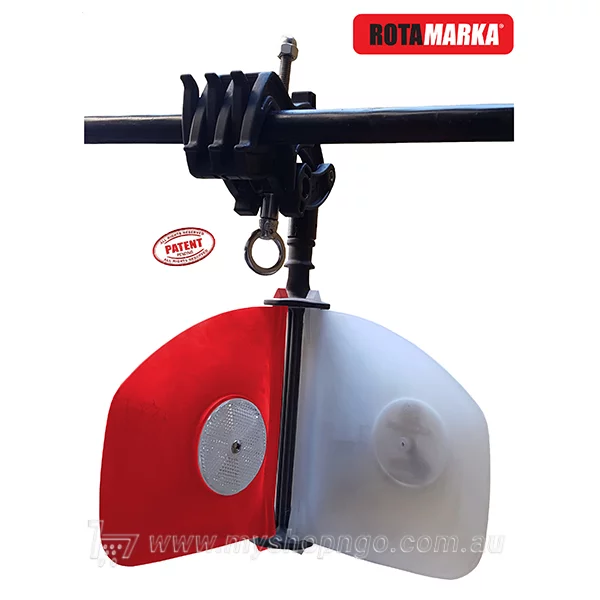

Rotamarka™ Mini Powerline Warning Marker – Eye Ring Fitting WM-CS-E-1H-RW

Rotamarka™ mini warning markers have a 3D, rotating design that can be seen from any angle, providing an excellent visual warning of overhead power lines.

Application:

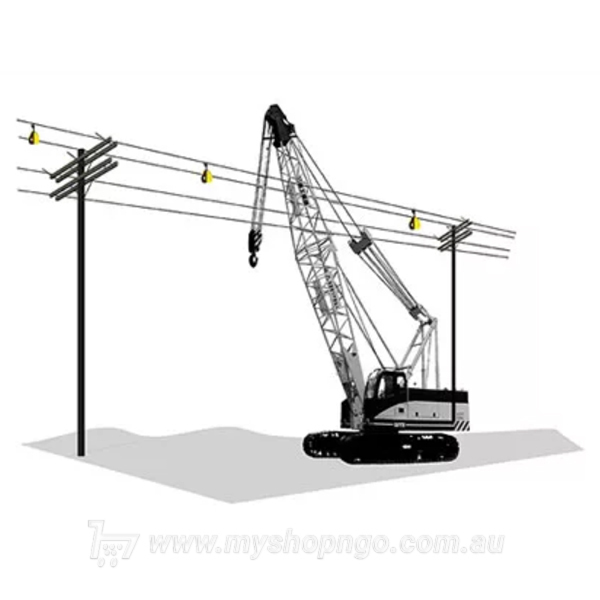

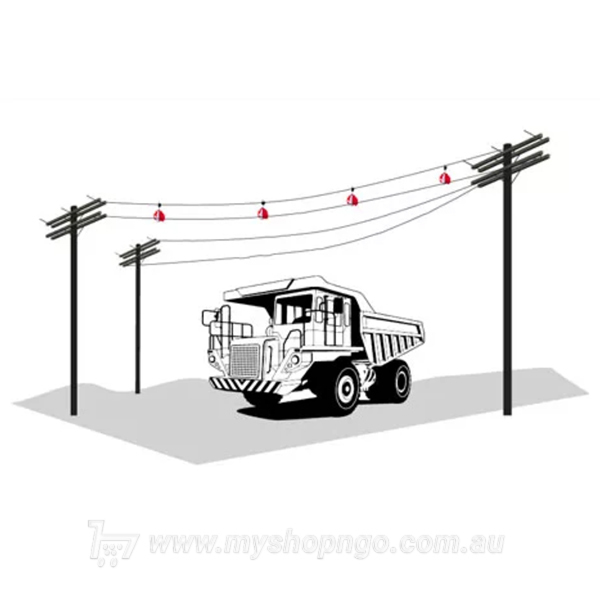

In the mining, construction and electrical distribution industries, accidental contact with power lines is all too common occurrence, causing serious injury or death as a result. In addition, these incidents can cause power outages and major asset damage.

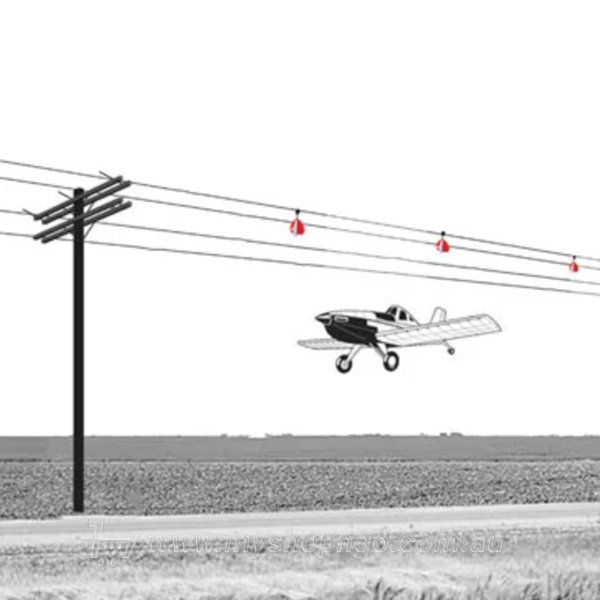

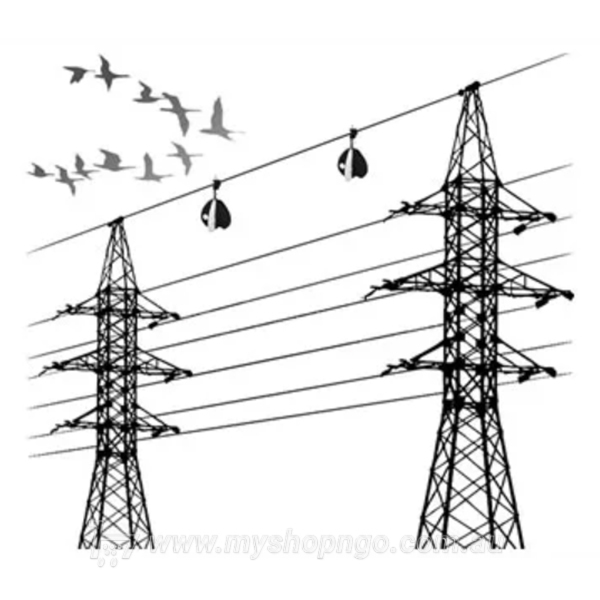

The highly effective Rotamarka™ mini warning marker can prevent birds, low flying aircraft and industrial vehicles from accidentally coming into contact with power lines, which is a phenomenal contribution to safety innovation.

The 3D design rotates and agitates in even the slightest wind, while contrasting colours and in-built reflectors increase visibility in low light and dark conditions. As a result, the Rotamarka™ can be seen from up to 2kms by pilots.

Features:

Eye ring fitting for easy, low cost installation
AS 3891.2 Clause 2.3.1 (d) compliant
Designed with science
Premium reflectors on all fins
Compact size and weight for reduced line loads
Less markers required on lines
Has undergone a battery of tests at leading universities, including tests against snow, ice, wind, heat and ozone
Aerodynamic design rotates for high impact visibility

Installation:

You can install the Rotamarka™ mini warning marker on power lines, cables, wires and conductors, using the Rotamarka install tool. It has an eye-ring fitting to work with standard live line tools, and can be installed from the ground using a shotgun or telescopic hot stick. The recommended tightening torque is 4Nm.

The clamp is universal and fits and range of conductors, opening and closing from 2 – 50mm. Moreover, the clamp’s soft jaws protect the cable, increasing grip to stop cable creep.
