TOC,MAINS 5-19 AL,TAP 6-35 INS CAW35E

Name: TOC,MAINS 5-19 AL,TAP 6-35 INS CAW35E
SKU: 00813
Price: 16.12 AUD
Availability: BackOrder
Rating: 5.00 (1 reviews)

5.00 out of 5 based on 1 customer rating

(1 customer review)

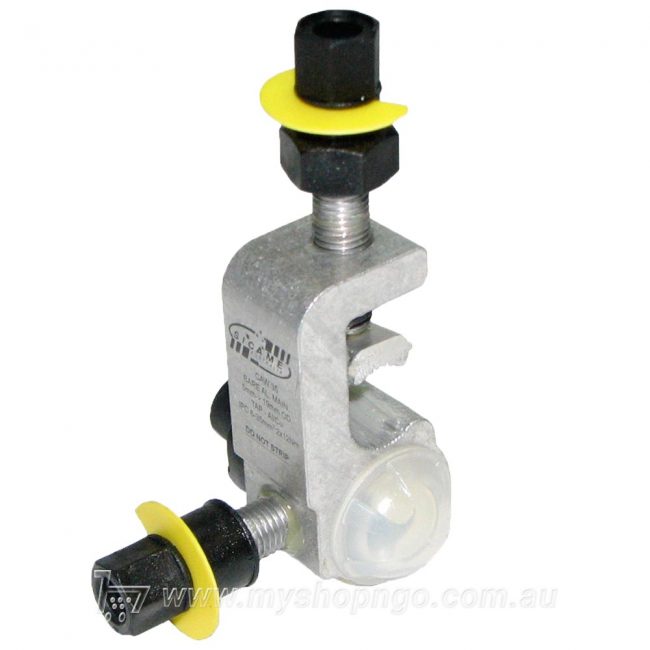

Sicame CAW35E Tap Off Connector (TOC)

$16.12 ex GST

ARS code: 00813

Available on back-order

ARS code: 00813 Categories: LV ABC Fittings, Tap Off Connectors Brand: Sicame

Order by 9am
for same day dispatch or local pick-up

Only quality products -
we've worked as electrical contractors ourselves

Low overheads =
competitive wholesale pricing for you

Product Details
Reviews (1)

Product Details

Sicame CAW35E Tap Off Connector (TOC)

Application:

Sicame have designed the CAW series of Tap Off Connectors (TOC’s) for use on Australia’s utility networks where the mains is bare aluminium.

CAW series have been specially designed to provide a waterproof connection between insulated overhead services and bare aluminium mains. Electrical contractors and ASP’s can safely and easily install the CAW35E.

Mains and service ranges:

Mains: Bare AL

Stranding = 7/1.75 – 19/3.75
Area (mm2) = 16 – 210
OD (mm2) = 5 – 19

Service: Insulated copper or AL

Range (mm2) = 6 – 35
Insulated PVC, XLPE Copper or AL

Features:

Piercing connector on service tap
High-vis shear-off ID tags
Complies with AS4396
Easily disconnect service by removing the connector from the mains
Simple M8 socket operation
Comes in a box of 6

Installation Notes

Use only a 13mm, six-point hexagon socket to tighten bolts (ARS Code 02345).

All other connections made on the service and consumer’s cable must also be waterproof to prevent moisture ingress through the cable into the connector.
