TOC,MAINS 3-15 CU,TAP 6-35 INS CCW35E

Name: TOC,MAINS 3-15 CU,TAP 6-35 INS CCW35E
SKU: 00808
Price: 21.23 AUD
Availability: InStock

Sicame CCW35E Top Off Connector (TOC)

$21.23 ex GST

ARS code: 00808

ARS code: 00808 Categories: LV ABC Fittings, Tap Off Connectors

Order by 9am
for same day dispatch

Only quality products -
we've worked as electrical contractors ourselves

Low overheads =
competitive wholesale pricing for you

Product Details
Reviews (0)

Product Details

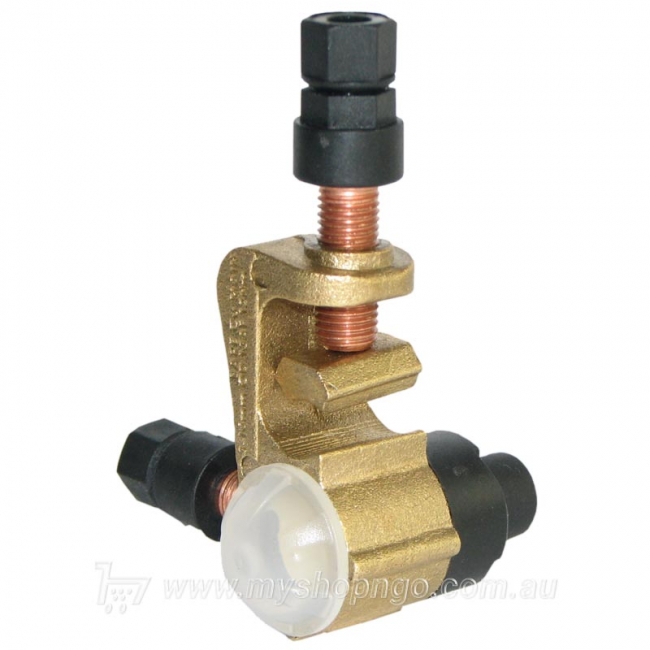

Sicame CCW35E Tap Off Connector

Application

Sicame have designed the CCW series of Tap Off Connectors (TOC’s) for use on Australia’s utility networks where the mains is bare copper.

CCW series have been specially designed to provide a waterproof connection between insulated overhead services and bare copper mains. Electrical contractors and ASP’s can safely and easily install the CCW35E.

CCW235E specifications

Mains Range – Bare Copper 7/1.00 to 19/3.00, 5.5 to 135mm2 (3-15mm OD)
Service Taps Range – Insulated PVC or XLPE Copper or Aluminium 2 x 6-35mm2
Two (2) Service Taps
Bolt Head 13mm AF
High visibility shear-off identification tags
Box of 12

Installation Notes

Use only a 13mm, six-point hexagon socket to tighten bolts (ARS Code 02345).

All other connections made on the service and consumer’s cable must also be waterproof to prevent moisture ingress through the cable into the connector.

For more info about this product, please contact us
