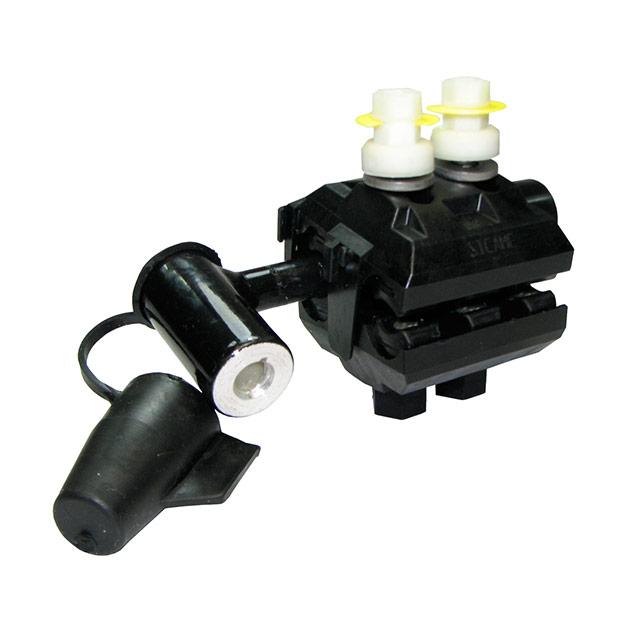

Sicame EPC1-401-TC insulation piercing connector – temporary earth point connector
Application
Sicame designed the EPC series of insulation piercing connectors (IPC’s) for use for earthing/temporary connection point from LV ABC – temporary bonding, earthing, generation point.
Sicame EPC1-401-TC specifications
- Comes with rubber cap with lanyard no hard wear
- Mains Cable Range – Insulated PVC or XLPE Copper or Aluminum 50-150mm2
- No need to strip cable to make the connection (insulation piercing connector)
- Two x M12 bolt head – torque controlling shear heads
- High visibility shear-off identification tags
- Provide a fully sealed waterproof connection
- Box of 10
Installation Notes
Use only a 8mm, six-point hexagon socket to tighten bolts (ARS Code 02345).
