Product Details

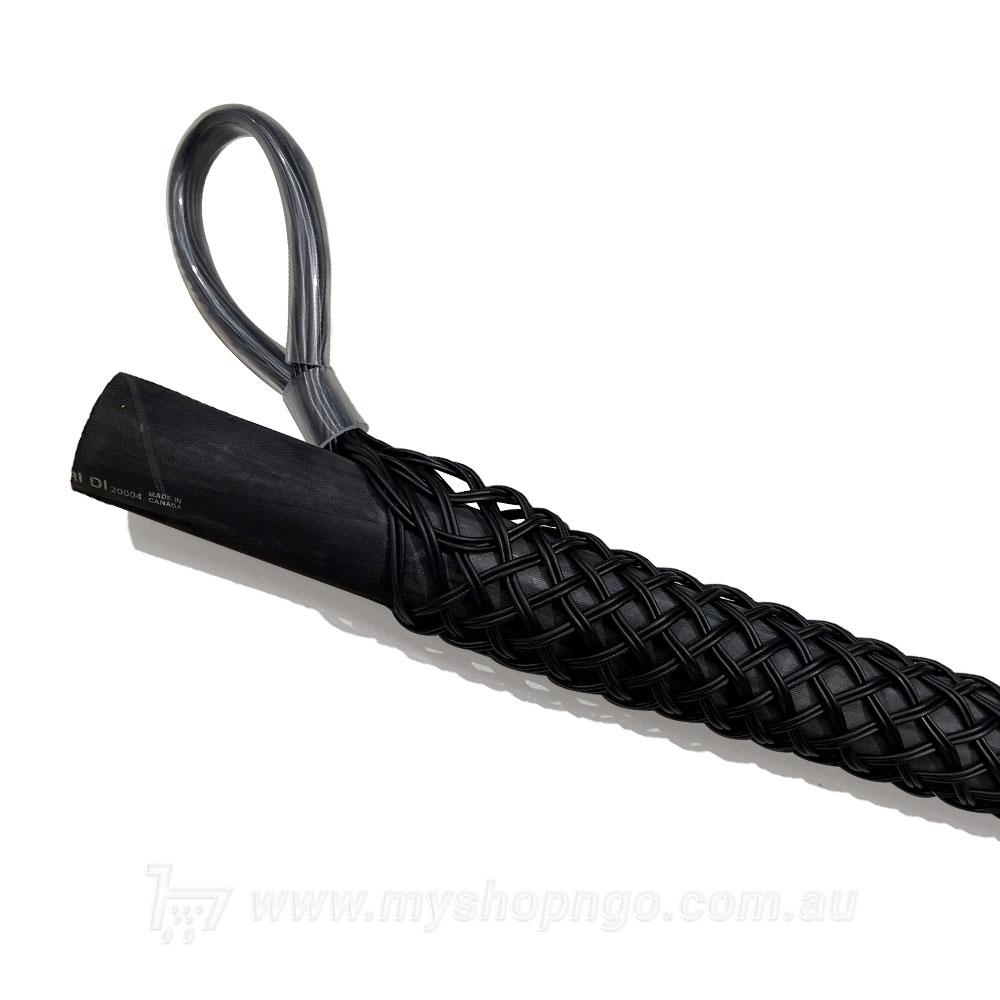

Single Offset Eye, Double-Weave Grips/Socks – manufacturer Slingco
Non-metallic pulling grips are suitable for pulling both single cables and cable bundles. They are incredibly strong and offer a great alternative to traditional steel grips.
The woven mesh is made from a high-strength aramid fibre with UV-protection coating. Non-metallic grips are impressively easy to work with, even without gloves!
Features and benefits:
- Continuous weave configuration
- No fraying wires
- Lighter and safer to handle
- Longer Life
- Dramatically improved weight to break ratio
Details of the Single Offset Eye, Double-Weave grip:
| ARS Code | Cable Diameter (mm) | WeaveType | Lattice Length (mm) | Overall Length (mm) | Break Load (kg) | Slingco Part No. |
|---|---|---|---|---|---|---|
| 10408 | 30-40 | Double | 523 | 745 | 2640 | ZCS1014 |
| 10410 | 40-50 | Double | 637 | 787 | 5389 | ZCS1015 |
| 10411 | 50-65 | Double | 636 | 909 | 7212 | ZCS1016 |
| 10412 | 65-80 | Double | 667 | 940 | 7212 | ZCS1017 |
| 10413 | 80-100 | Double | 873 | 1070 | 7212 | ZCS1018 |
For more info about this product, please contact us.
