Product Details

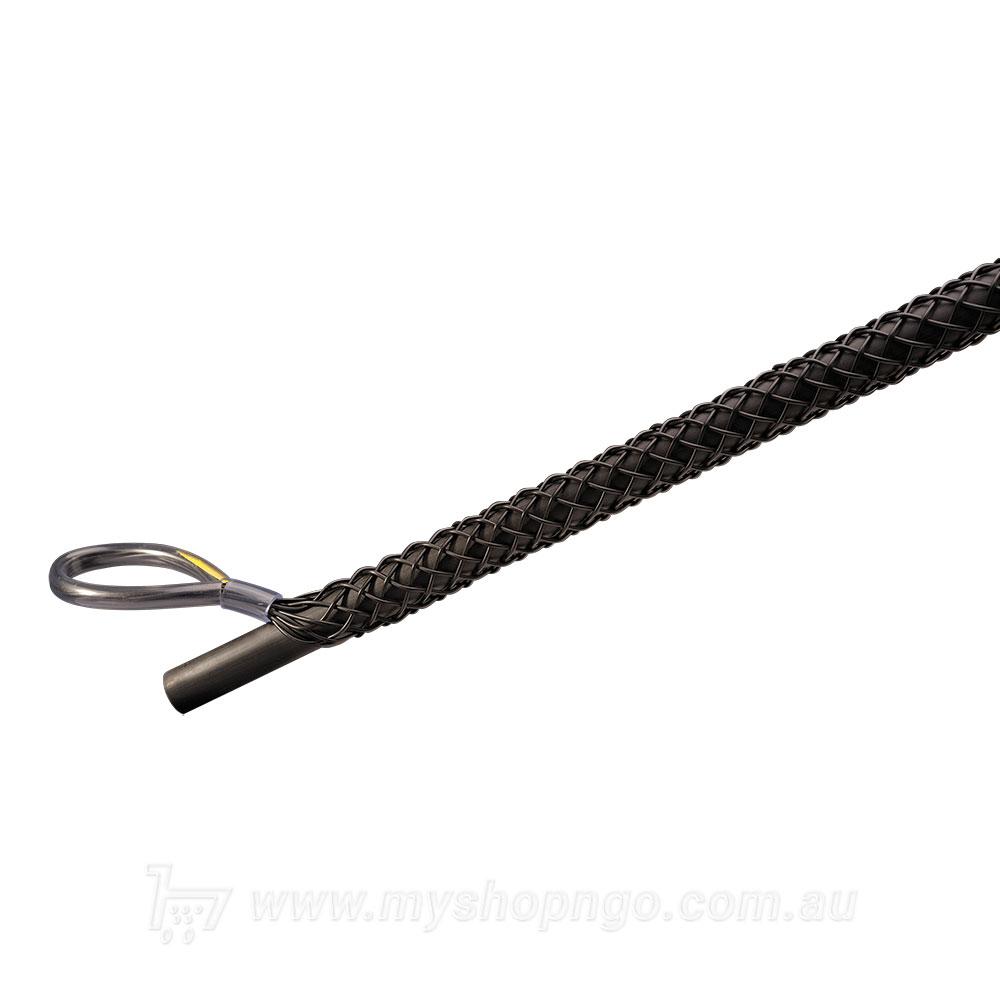

Single Offset Eye, Single-Weave Grips/Socks – manufacturer Slingco
Non-metallic pulling grips are suitable for pulling both single cables and cable bundles. They are incredibly strong and offer a great alternative to traditional steel grips.
The woven mesh is made from a high-strength aramid fibre with UV-protection coating. Non-metallic grips are impressively easy to work with, even without gloves!
Features and benefits:
- Continuous weave configuration
- No fraying wires
- Lighter and safer to handle
- Longer Life
- Dramatically improved weight to break ratio
Details of the Single Offset Eye, Single-Weave grip:
| ARS Code | Cable Diameter (mm) | Weave Type | Lattice Length (mm) | Overall Length (mm) | Break Load (kgs) | Slingco Part No. |
|---|---|---|---|---|---|---|
| 10405 | 10-20 | Single | 525 | 695 | 1116 | ZCS1010 |
| 10406 | 20-30 | Single | 523 | 740 | 1624 | ZCS1011 |
| 10407 | 30-40 | Single | 642 | 870 | 2232 | ZCS1012 |
| 10409 | 40-50 | Single | 862 | 1057 | 4472 | ZCS1013 |
For more info about this product, please contact us.
